前言

JPA 一种规范,并非ORM框架,也就是ORM上统一的规范。

今天学习的是 spring-data-jpa,与 Mybatis 类似。根本上都是用来在 Java 中用来操作数据库的,不是比 Mybatis 强,也不比 Mybatis 弱,各有各的好处。

那就有人要说了,那我为啥要再去学 JPA,而不直接接着用 Mybatis。其实 JPA 技术的核心在于便捷开发,可以直接通过实体字段映射表字段,在启动项目的时候,根据配置策略来进行表结构的生成或者增量变动

下面我们通过一些简单的案例来初步学习下。

总结

用这项技术可能会出现什么问题,官方有没有提供方案解决,如果没有,可能的解决方案有哪些。

  • spring-boot-starter-data-jpa 是Spring Boot的项目,包含了spring-data-jpa和一些其他依赖用于Spring Boot项目
  • spring-data-jpa 是Spring Data的项目,就是本体,用于任何项目

解决

  • 为了执行简单查询分页,编写太多重复代码
  • 基于JPA的数据访问层的增强支持

    用了之后可以做什么,为什么要用?如下代码解释

实体类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
package com.example.springredis.entity;

import lombok.Data;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import java.io.Serializable;

@Entity
@Data
public class User implements Serializable {
@Id
@GeneratedValue(strategy = GenerationType.AUTO)
private Long id;
private String name;
private String account;
private String pwd;

}

dao层

1
2
3
4
@Repository
public interface UserDao extends JpaRepository<User, Long> {

}

测试类

1
2
3
4
5
6
@Autowired
private UserDao userDao;

public void findAllTest() {
System.out.println(userDao.findAll().toString());
}

上面的操作已经完成了一个查询全部,相信不用在做多余的解释了

JPA优点:主要就是简单易用,集成方便,可以不用写SQL语句

准备工作

这里使用的是Maven,下载之后请在IDEA导入项目

项目结构图


先看pom.xml配置

国外依赖下载慢,更换阿里源

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://maven.apache.org/POM/4.0.0"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.3.0.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.example</groupId>
<artifactId>springboot-jpa</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>springboot-jpa</name>
<description>Demo project for Spring Boot</description>

<properties>
<java.version>1.8</java.version>
</properties>

<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>

<dependency>
<groupId>com.h2database</groupId>
<artifactId>h2</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>

<repositories>
<!--阿里云主仓库,代理了maven central和jcenter仓库-->
<repository>
<id>aliyun</id>
<name>aliyun</name>
<url>https://maven.aliyun.com/repository/public</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
<!--阿里云代理Spring 官方仓库-->
<repository>
<id>spring-milestones</id>
<name>Spring Milestones</name>
<url>https://maven.aliyun.com/repository/spring</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
</repositories>

</project>

定义一个实体对象 SysUser.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
package com.example.demo.model;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;

@Data
@NoArgsConstructor
@AllArgsConstructor
@Entity(name = "sys_user")
public class SysUser {

@Id
@GeneratedValue(strategy = GenerationType.AUTO)
private Long id;

private String email;

private String username;

private String password;

public SysUser(String email, String username, String password) {
this.email = email;
this.username = username;
this.password = password;
}
}
  • 这里有一个**SysUser** 类, @NoArgsConstructor 默认构造函数仅为JPA而存在。
  • 另一个构造函数是您将用于创建要保存到数据库的user实例的构造函数。
  • 在类上加 @Entity 注解,表示这个是一个 JPA 的实体,如果在类上没有加 @Table 注解,表明该实体将映射到名为 sys_user 的表,如果要加上,可以在其 name 属性里写入表名,如: @Table(name = "t_user")
  • id 属性使用 @Id 注释,以便JPA将其识别为对象的ID.
  • @GeneratedValue(strategy = GenerationType.AUTO) 自增长ID策略

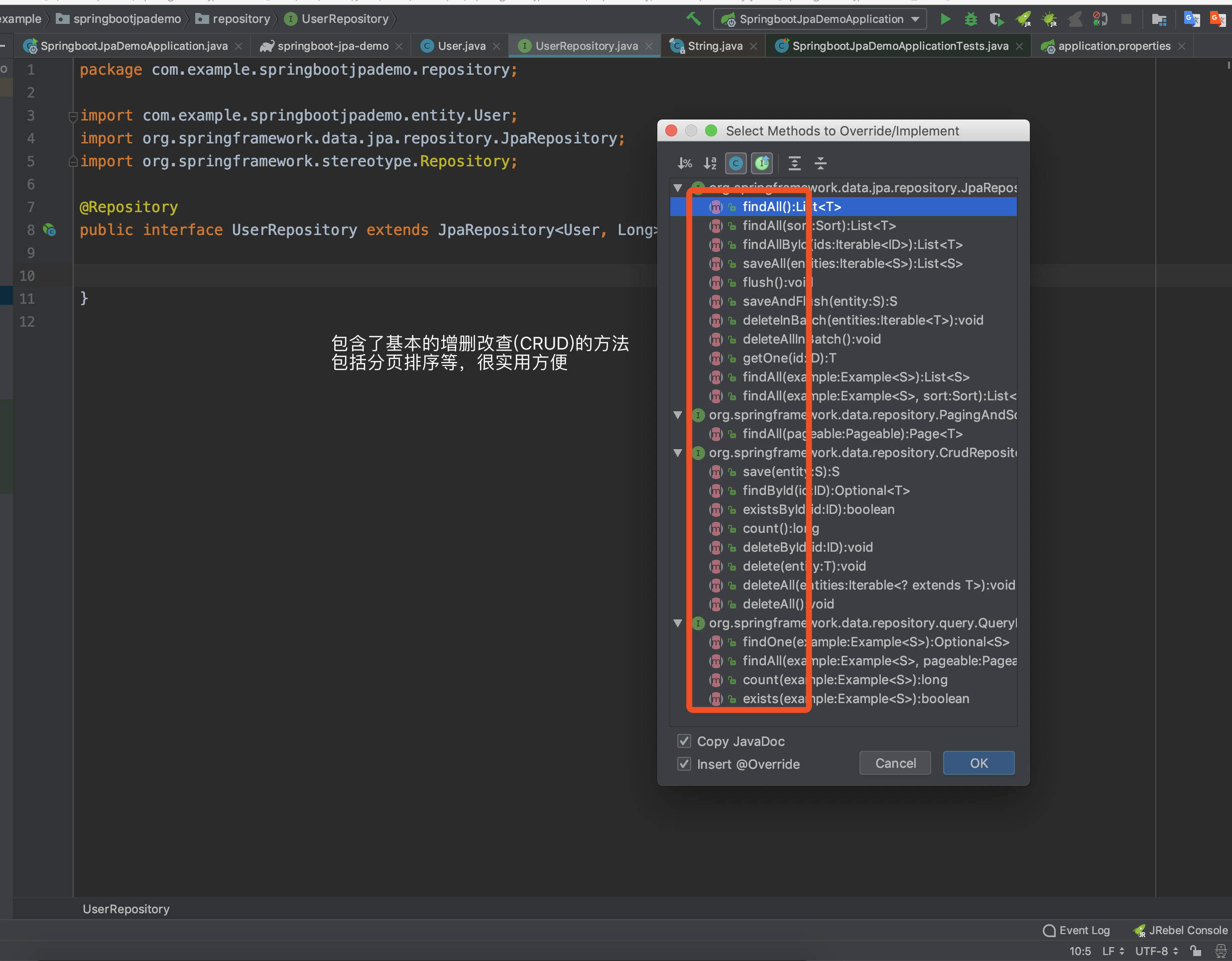

创建一个 UserRepository.java 接口

这里很简单,直接继承核心接口JpaRepository

1
2
3
4
5
6
7
8
9
10
package com.example.demo.repository;

import com.example.demo.model.SysUser;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface UserRepository extends JpaRepository<SysUser, Long> {

}

配置文件application.yml

修改application.properties 为 application.yml

src/main/resources/application.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
spring:
datasource:
driverClassName: org.h2.Driver
password: root
url: jdbc:h2:mem:demodb:file:data/demo
username: root
jpa:
open-in-view: true
database-platform: org.hibernate.dialect.H2Dialect
# spring.jpa.show-sql=true 配置在日志中打印出执行的 SQL 语句信息。
show-sql: true
# 配置指明在程序启动的时候要删除并且创建实体类对应的表。
# create 这个参数很危险,因为他会把对应的表删除掉然后重建。所以千万不要在生成环境中使用。只有在测试环境中,一开始初始化数据库结构的时候才能使用一次。
# ddl-auto:create----每次运行该程序,没有表格会新建表格,表内有数据会清空
# ddl-auto:create-drop----每次程序结束的时候会清空表
# ddl-auto:update----每次运行程序,没有表格会新建表格,表内有数据不会清空,只会更新(推荐)
# ddl-auto:validate----运行程序会校验数据与数据库的字段类型是否相同,不同会报错
hibernate.ddl-auto: update

h2数据库

在resources 文件夹下新建 data.sql

data.sql

1
2
3
4
5
6
7
8
9
DROP TABLE IF EXISTS sys_user;

CREATE TABLE sys_user
(
id INT AUTO_INCREMENT PRIMARY KEY,
email VARCHAR(250) DEFAULT NULL,
username VARCHAR(250) NOT NULL,
password VARCHAR(250) NOT NULL
);

测试类进行测试 SpringbootJpaApplicationTests.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
package com.example.demo;

import com.example.demo.model.SysUser;
import com.example.demo.repository.UserRepository;
import lombok.extern.slf4j.Slf4j;
import org.junit.After;
import org.junit.Before;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

@Slf4j
@RunWith(SpringRunner.class)
@SpringBootTest
public class SpringbootJpaApplicationTests {

@Autowired
private UserRepository userRepository;

@Before
public void add() {
userRepository.save(new SysUser("123@qq.com", "root", "root"));
}

@Test
public void contextLoads() {
System.out.println(userRepository.findAll().toString());
}

//修改操作
@After
public void update() {
// ifPresent 如果存在值,则使用值调用指定的使用者,否则不执行任何操作。
userRepository.findById(1L).ifPresent(user -> {
user.setUsername("马华云腾");
userRepository.save(user);
System.out.println(user.toString());
});
}

//删除
@After
public void del() {
userRepository.findById(2L).ifPresent(user -> userRepository.delete(user));
}

}

测试输出


常见异常

如果出现下列等错误:

1
2
3
Error:(41, 13) java: 找不到符号
符号: 方法 setName(java.lang.String)
位置: 类型为com.example.springbootjpademo.entity.User的变量 user

请注意下面的设置是否正确:

RestClient API 测试


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
### 新增1

POST http://localhost:8080/user/add
Content-Type: application/json

{
"email": "eyck@aws.com",
"username": "root",
"password": "root"
}

### 新增2

POST http://localhost:8080/user/add
Content-Type: application/json

{
"email": "ekko@aws.com",
"username": "ekko",
"password": "ekko"
}

### 修改

PUT http://localhost:8080/user/update
Content-Type: application/json

{
"id": 1,
"email": "eyck@aws.com",
"username": "root",
"password": "root"
}

### 获取所有
GET http://localhost:8080/user/all
Accept: */*
Cache-Control: no-cache

### 删除

PUT http://localhost:8080/user/del/2

### 获取所有
GET http://localhost:8080/user/all
Accept: */*
Cache-Control: no-cache

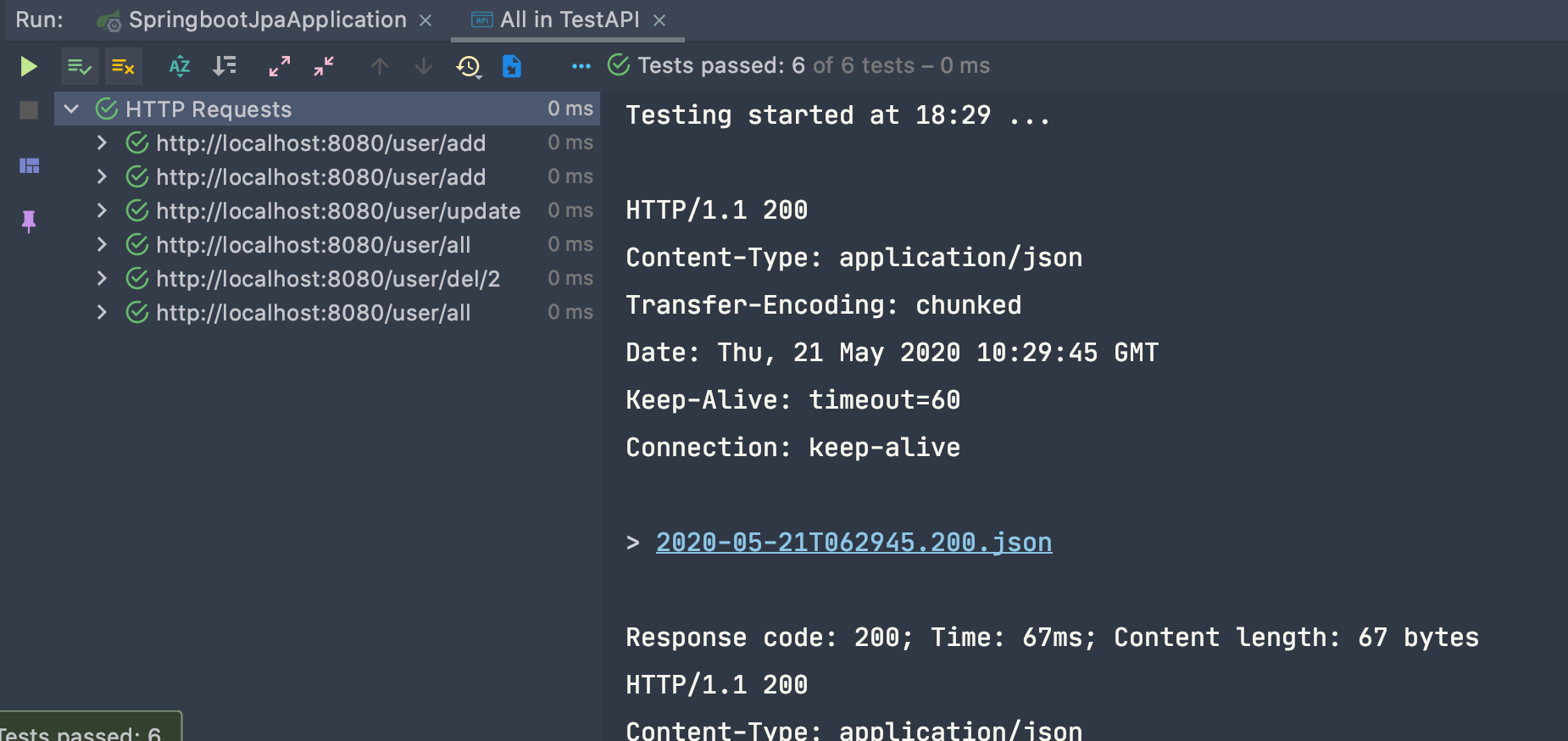

左上角 Run all …
测试结果….

代码地址

https://github.com/Gleans/spring-boot/tree/master/springboot-jpa


https://cuifuan.github.io/2022/05/29/back-end/spring-boot/jpa/
作者
cuifuan
发布于
2022年5月29日
许可协议
